Binding to Game Objects

A NetRecord is data. To show it in the world, bind it to a game object with components. There is no property binding system: scripts read and write fields through a bus using field handles.

Net Record Access #

Add Component, Netcode, Net Record Access to a prefab and choose its NetRecord Type. The entity then represents a NetRecord of that type. It raises OnNetworkSpawn, OnNetworkDespawn, OnOwnerChanged and OnFieldChanged, and scripts use its request bus to read and write fields.

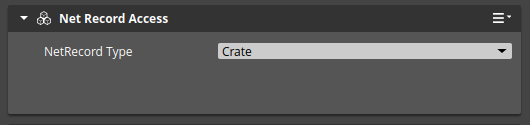

The Inspector showing the Net Record Access component with its NetRecord Type set to Crate.
Net Record Access with the type set to Crate.

Net Transform #

Net Transform syncs position, rotation and scale. Its settings include a preset, the axes, position range and decimals, rotation precision, a send interval, a buffer multiplier, a snap distance and extrapolation. The fields it uses must exist on the type, so use “Add a pose…” on the Types page. If they do not match, the gem logs the name of the missing field.

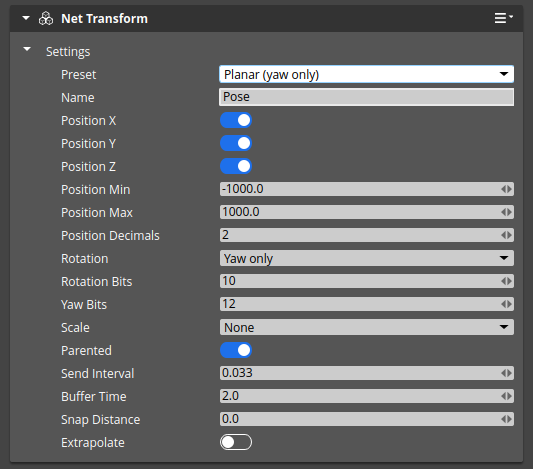

The Inspector showing the Net Transform component with its preset, position range and decimals, rotation bits, send interval, buffer time, snap distance and extrapolate settings.
Net Transform settings on a Pawn.

Call NetTransformRequestBus.Event.Teleport(entityId) before you teleport an object so it is not smoothed across the jump, and SetControlled(entityId, true) when your game predicts the object itself.

Net Spawner #

Put a Net Spawner on a level entity and give it rows that pair a NetRecord type with a prefab. Every peer then spawns the prefab when a NetRecord of that type appears, and removes it when the record goes. A row can keep the object when the record is removed, deactivate it when it is unobserved, or mark the prefab as the player object.

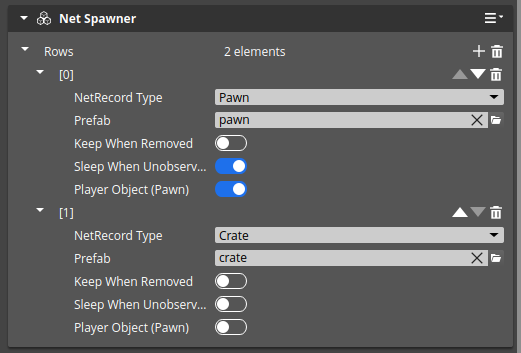

The Inspector showing the Net Spawner component with two rows, Pawn to the pawn prefab and Crate to the crate prefab.
Net Spawner with a row for each type.

Putting it together #

  1. Define a Crate type with the fields you need and a pose.
  2. Make a Crate prefab with Net Record Access (type Crate) and Net Transform.
  3. Add a Net Spawner to the level with a row Crate to the Crate prefab.
  4. On the Any Server, create a record of type Crate. Every peer spawns the prefab.
local rec = NetcodeRequestBus.Broadcast.CreateRecord("Crate", -2)  -- -2 is the Any Server

Next: Sessions.
